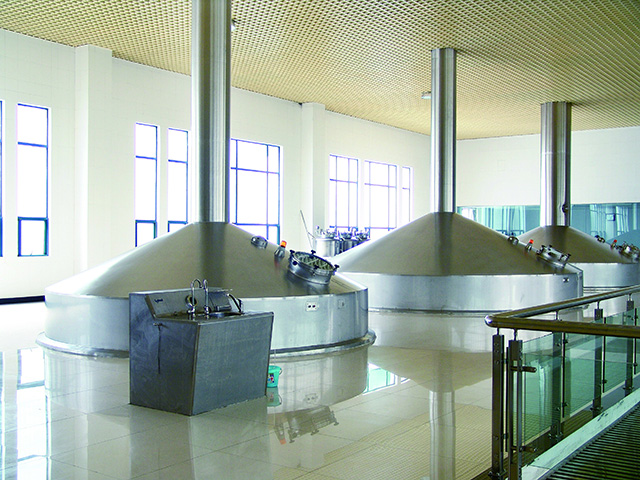

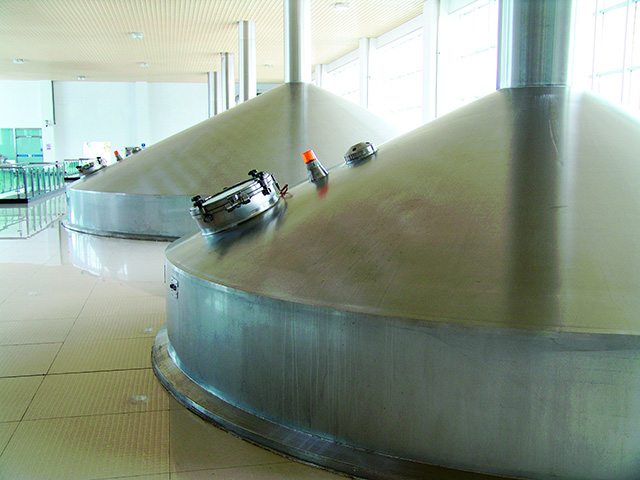

Wort Kettle System
Boiling process of dynamic low pressure, form the intense boiling, increase the aggregation between the protein and polyphenol, promotes the formation and separation of polymers, and speeds up evaporation of DMS and etc.
Wort kettle system:
★ Boiling process of dynamic low pressure, form the intense boiling, increase the aggregation between the protein and polyphenol, promotes the formation and separation of polymers, and speeds up evaporation of DMS and etc.
★ Wort into the boiling pot close to 100 ℃ temperature, reducing the coking.
★ Setting the circulatory system and internal CIP cleaning system for wort.
★ Specially designed double-diversion and distribution of blowout preventer cap or umbrella, effectively increase the evaporation area, and shorten the boiling time.
★ Evaporation amount reduced, dynamic low pressure boiled, reduce the coking and cleaning time, to reduce the cleaning water and washing agent, reach to the purpose of save energy and energy consumption.

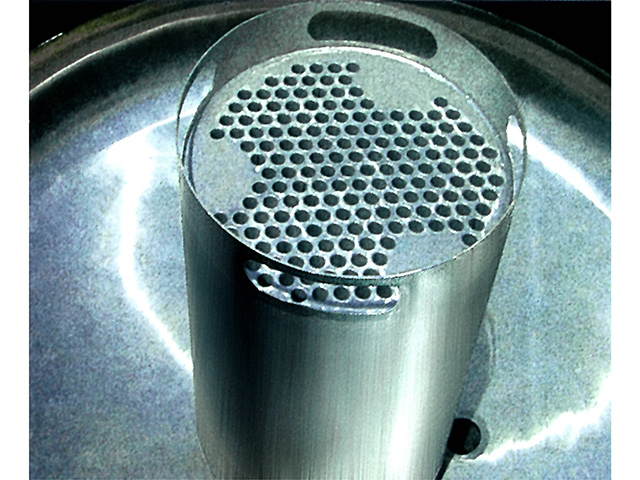

★ The heater in the boiling pot, fully consider the even spread and circulation of steam.
★ Use 2-3 hop adding tanks, operation process is side in top out, reduce the hop agglomeration, and block the pipeline, after adding, use the pump to extract off and cleaning with hot water for efficient and health.
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Use the speed control system of frequency conversion control, two motors of plow tank, draintank divided driving, lifting system of electric hydraulic.Learn More
Concentrated acid concentrated alkali adding device, alkali tank, acid tank, recycling water tank.Learn More
Import of wort and and the tangential line has the angle of 20 °, reduce the pressure head loss ofrotation wort friction with the tank wall, rotation speed of wort is 8~10rpm.Learn More
Heat Energy Recollection System
With the heat interchanger to replace and recover the heat water of second steam which comeout through the normal pressure or low pressure boiling processLearn More
