Yeast Recycle & Storage System

System general information:

★ In beer production scene, the yeast can be collected after ferment, sugar descending finished and diacetylene passed, and at the meanwhile, the collected yeast can be stored effectively in a short time;

★ Touchable screen is taken as operation and supervision interface;

★ For all controlling components and sense components, imported famous brand products are selected;

★ Temperature dropping is finished mainly by board type heat exchanger, and the temperature control in store jar is mainly realized by jar self-cooling sleeve;

★ When adding yeast or body temperature self-dropping, the whole consistency of yeast liquor is realized by special churning settings;

★ When jar is collecting yeast, its instantaneous flux and accumulated flux can be displayed on time, so that the collected yeast quantity can be controlled precisely;

★ The actual liquor level in yeast store jar can be weighted by electronic weight scale and displayed on time;

★ Frequency conversion cam pump is selected to collect yeast, at the meanwhile, supervised by flowmeter to control yeast collection quantity and speed effectively.

System constitute:

★ The system is comprised by yeast collection and yeast effective store;

★ For self-controlling system, 10 feet touchable screen controlling interface and PLC controlling components, imported famous brand products are selected;

★ For key components such as electromagnetic flowmeter, electro weight scale, temperature sensor, board type heat exchanger and churn settings, imported famous brand products are selected;

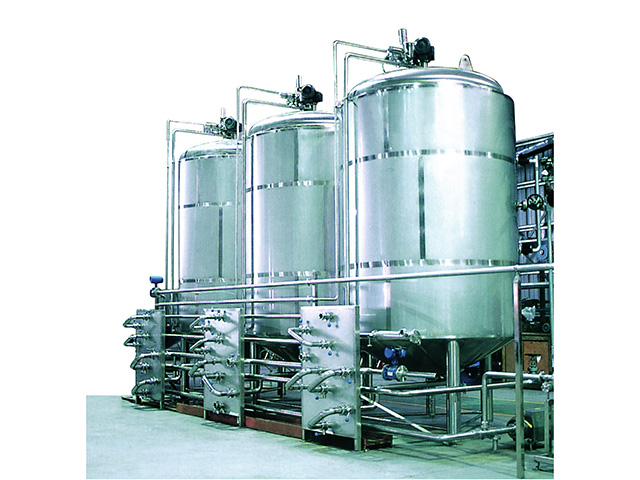

★ There are two to four yeast store jars with a capacity that can be customized as per actual need from clients. And cooling setting and jar top churn setting are set, jar body is heat preservation and the outside is protected by stainless steel;

★ PALL Company’s steam and air purify system is collocated. For steam filtration, stainless steel powder sinter is taken, with a filtration hole which diameter is 1μm. For air filtration, two level filtration is adopted, with filtration holes which diameters are 1μm or 0.01μm separately.

Characteristics of the equipment:

★ No dead space of tank body design, high finish and easy to clean, a very reliable sterilizing performance, and can through the CIP cleaning to ensure the cleaning and sterilization effect of the entire system.

★ The smooth design of pipeline, the pipelines all use the closed path design of close type, to ensure that no dead space when cleaning.

★ The whole system no design of steam leaking, keep the working place and environment high health standards.

★ Accurate manufacturing process: roughness of the tank inside surface is 0.4μm, roughness of the tank outside surface is 0.8μm.

★ Cooling form: shell Miller board interlayer alcohol water for indirect cooling.

★ Welding of the pipelines use the argon welder, gas shielded, to ensure the inner surface smooth of pipeline welding, meet the safety of CIP cleaning.
