On-site & Concerntrated Caustic Recycle System

System introduction:

★Beer bottle filling machine is a major production line equipment. Mainly for addition tostandard beer bottles, disinfection, sterilization and cleaning for beer filling line with sanitaryrequirements ofthe clean container. The washing machine used washing liquid, usually witstrong% sodium hydroxide solution. With the increase in the number of bottle washing, a largenumber of suspended solids and paper fibers mixed in the washing solution. In order to bottlewashing quality, manufacturers may from time to time drain sewage lye. Lye will increasethe use of a short washing cycle costs, while another lye drain sewage treatment enterprisesincreased the cost of beer. However, withincreasingly fierce competition in the beer industry,beer production and cost control more important. Meanwhile, the state increasingly strictenvironmental pollution control, and lye is one of the important pollutants. For this reason,beer companies are particularly concerned about the use of lye washing machine cycle, tominimize the emission of waste lye. Conducive to environmental protection, but also reducethe cost of beer production. The alkali recovery system developed that can be achievedthrough different processes can be centralized and can recycling line filter, flexible and userfriendlylayout options.

System feature:

★ Section alkali, water, acid, festival steam. The payback period is short, the economicbenefit.

★ The twelve filtration, convenient combination.

★ A belt filter (or filter) to remove the lye in the paper fibers, stickers, size particles.Completely eliminate the sprinkler pipe clogging.

★ Two microporous ceramic membrane filtration tank, high filtration precision, removal ofsuspended solids and fine paper fibers, part of colloid; automatic backwash air and waterregularly to keep the flow; not sewage backwash.

★ Effectively remove 8μm more particulate matter and suspended solids.

★ The main materials used equipment sus304, acid and alkali, product appearance, smallfootprint.

★ Touch screen, plc control, user-friendly, simple, automatic control system filter backwash;

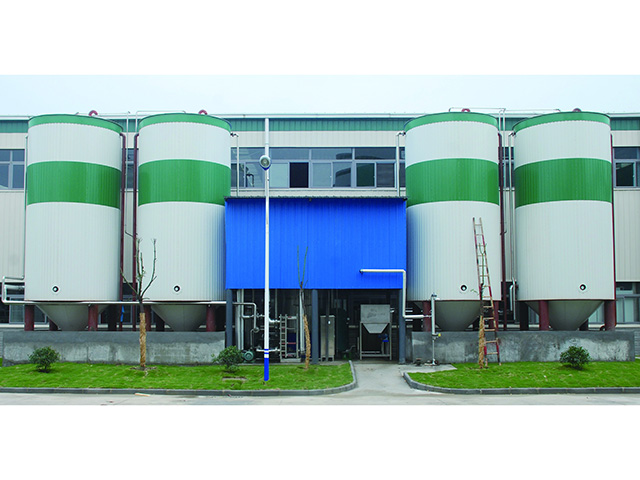

★ Storage tanks: washing machine repair store for when the lye, user-owned (can achievecentralized treatment)

Technical parameter:

★ Lye recovery of more than 95%

★ Recovered alkali clear brightness: 8-20ebc

★ Treated with lye concentration: <0.01%

★ Filtration precision: 1 ~ 5μm

★ Filter traffic :6-20 m3/h

★ Working pressure: atmospheric pressure

★ Operating temperature: ≤ 100 ℃

★ Filter material: lightweight porous ceramics
