Bottle crusher & storage
With the demand for mechanization of beer production and the need to improve lean production, in the past EBI kicked out of the bottle after the collection of artificial delivery, not only manual labor, and time consuming labor.

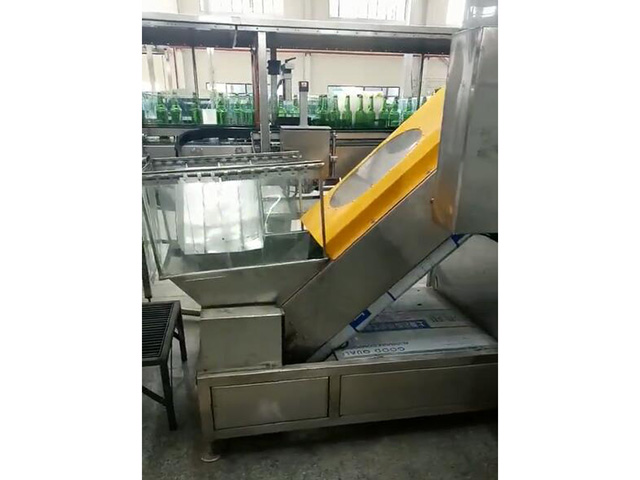

With the demand for mechanization of beer production and the need to improve lean production, in the past EBI kicked out of the bottle after the collection of artificial delivery, not only manual labor, and time consuming labor. Glass bottle crushing system, not only effectively solve this problem, and can save time and effort, but also can effectively help to enhance the management of packaging line site. Glass crusher is the use of hammer-type principle, when the glass bottle to the top of the use of self-weight crushed into the body, the grinder to take high speed rotation of the blade over the glass bottles, Will fall along the mesh sieve trough, and large pieces of glass will be the second impact, until you can go through the mesh sieve into the storage tank so far. This equipment can effectively reduce the operator from the workshop and the residue of the temporary storage area of the distance and time, reduce the intensity of work and improve efficiency, and one can achieve the size of the glass slag recovery requirements, remove the broken bottles of artificial links.
★ Rated production capacity: 2000-3000 bottles / hour
★ glass fragments size: 25-60mm
★ glass powder share: ≤ 0.17%
★ The main motor power: 2.2-3KW
★ Equipment Dimensions: 3960mmX1300mmX2870mm (length X width X high)

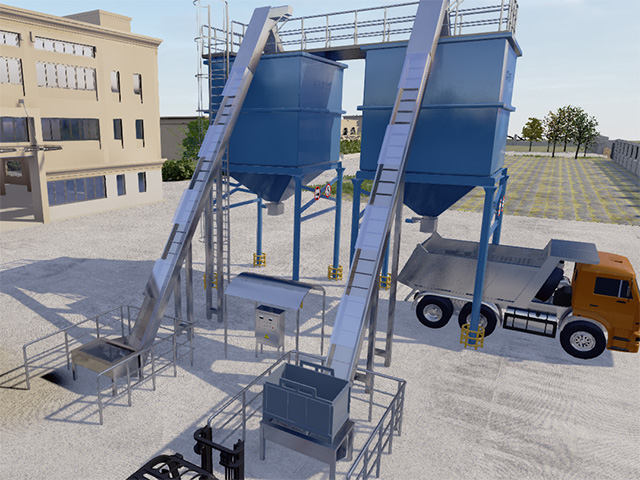

★ storage tank capacity: 2m3 (about 7,000 bottles)
Automatic operation instruction:
★ When the induction switch is OFF, the system will delay 15 S to stop the conveyor and crusher to ensure the stable operation of the equipment.
★ The machine has automatic start and stop function. When the hopper induction switch is ON, the whole system starts. .
★ equipment configuration maintenance platform, explosion-proof curtain, emergency stop switch, alarm device, when the trough is full, the system will automatically alarm to remind the trough is full, take manual removal processing.
